The SynQ-H is a compact controller designed for departments and operators who need full system
control in a small, easy-to-carry form factor. With 16 programmable buttons and five available backlight
colors, the SynQ-H keeps essential functions close at hand without requiring dashboard space. Its
ergonomic handheld design and quick one-second boot time make it ideal for confined cabins, tactical
units, or mobile users who need reliable access on the move.

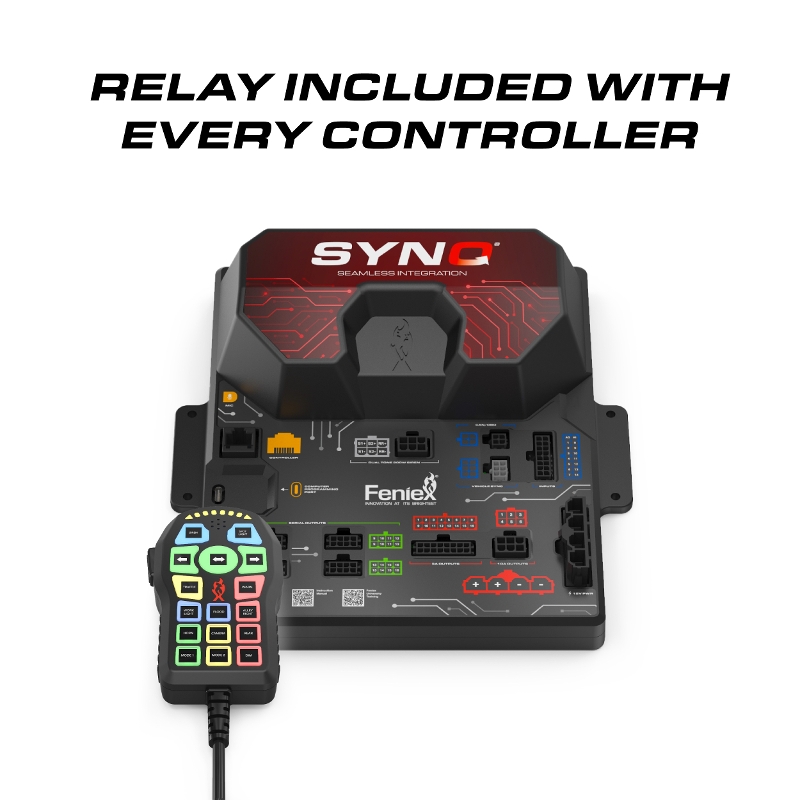

Despite its size, the SynQ-H pairs with the SynQ Relay to deliver the same high-performance system
power as larger controllers-200W dual-tone siren capability, 15+ siren tones, over 20+ audio
commands, and 22 total outputs. The controller is fully PC-programmable, allowing departments to
customize modes, lighting behavior, and auxiliary workflows while maintaining compatibility with up to 96
Q Serial or 16 Quantum 2.0 devices. The SynQ-H is the perfect balance of portability and performance for
modern emergency fleets.

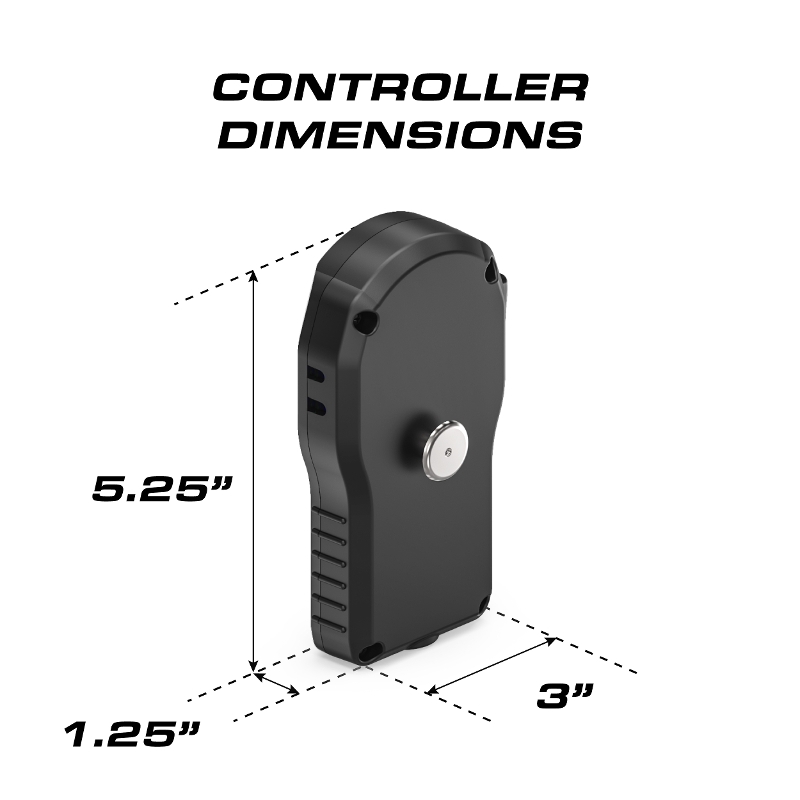

? Dimensions (Controller): 3" x 1.25" x 5.25"

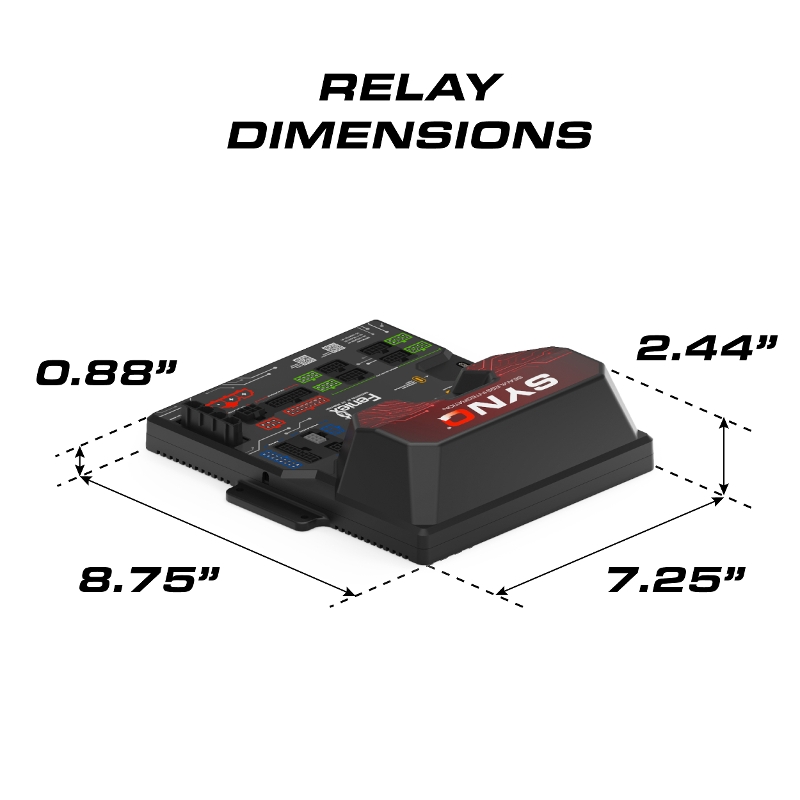

? Dimensions (Relay): 7.25" x 8.75" x 2.44"
? Input Voltage: 12-18VDC
? Standby Current: 0.35 Amps
? Total Max Current: 115 Amps
? Low Current Output Current Rating: 3 Amps

? High Current Output Current Rating: 10 Amps
? 2 Year Manufacturer Warranty

? 16 Programmable Buttons
? 5 LED Button Color Options
? Standardized Button Size
? 4 Button Style Configurations: Timer, Toggle, Multi-Press, and Momentary
? 8 LED Programmable Traffic Advisor Indicators
? 15+ Programmable Siren Tones
? 20+ Audio Commands
? 200W Dual-Tone Siren
? Horn Ring, Park-Kill, Hands-Free, & Radio Rebroadcast

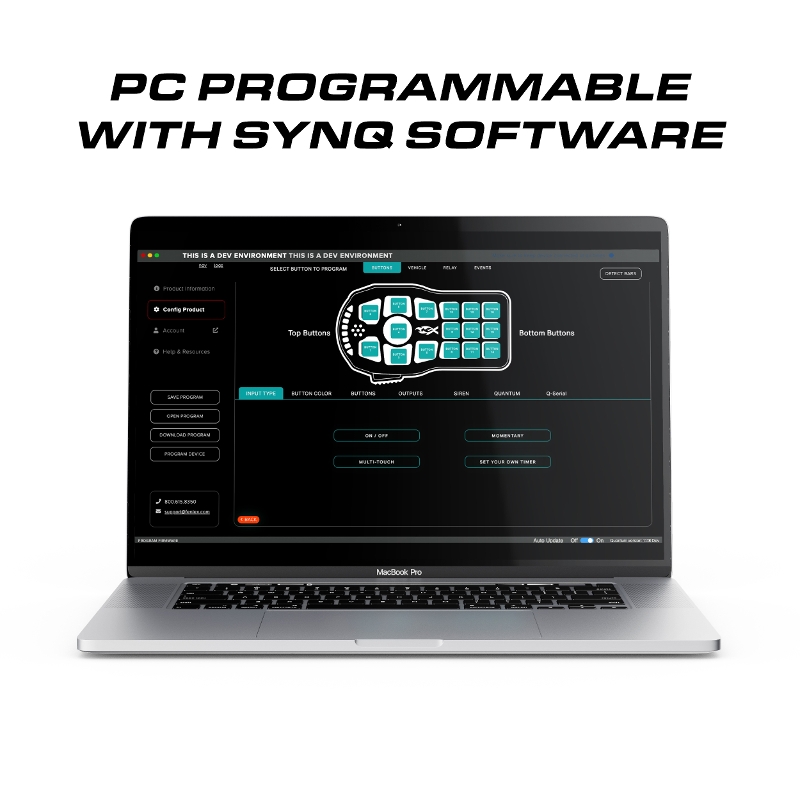

? PC Programmable
? Firmware Upgradable
? 1 sec. Boot Up Time
? 12 Low Current Positive Outputs
? 6 High Current Positive Outputs
? 4 Low Current Ground Outputs
? 15ft Wire Harness From Controller to Relay
? Built-in PA Mic
? Includes SynQ-H Controller, SynQ Relay, & 4x Label Sheets
? Supports Up to 96 Q Serial Lights or 16 Quantum 2.0 Products
? Syncs All Quantum and Q Serial Products
